Toggle Lever Valves

Kuhnke 76 series 3 way pneumatic toggle lever valve 1/4 ports

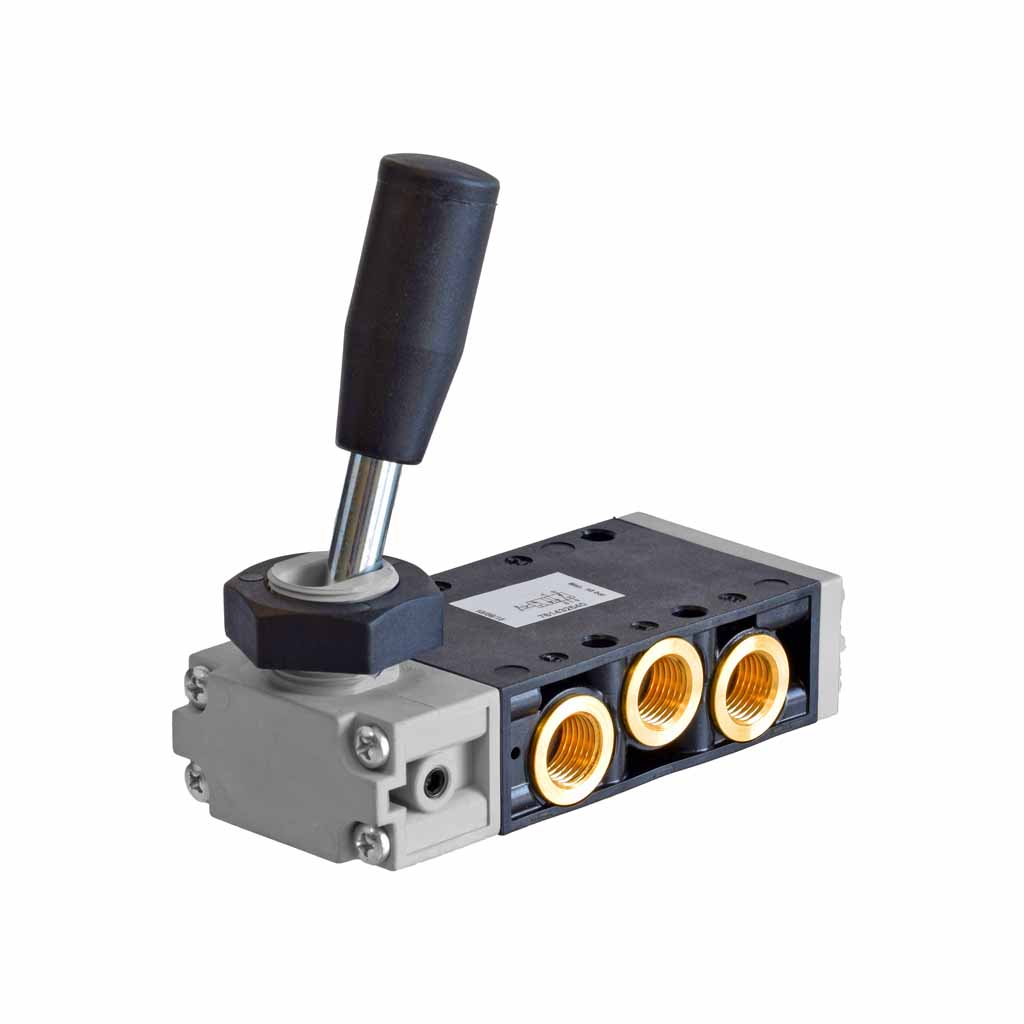

Kuhnke 76 series 5 way pneumatic toggle lever valve 1/4 ports
Kuhnke 76 series pneumatic toggle lever valve with inline lever
Kuhnke 76 series 3 way pneumatic toggle lever valve 1/8 ports
Kuhnke 76 series 5 way pneumatic toggle lever valve 1/8 ports

Pneumatic toggle lever valves are used to switch an air supply on or off manually; they can also be used to operate cylinders or signal other devices within pneumatic systems.

Toggle lever valves are secured to a surface using the pre-drilled body holes or can be panel mounted using the threaded neck and nut provided.

Lever valves are available as a 3 or 5-way valve configuration with a spring return or a maintained position with an optional pneumatic pilot return with G1/8 or G1/4 threaded connection ports.

We offer ATEX fully certified, CE-marked pneumatic lever valves that comply with the ATEX directive for use within Group II Category 2, zones 1 and 21.

Downloads
Inline lever 3/2 & 5/2 way 1/8" ports A1013 238KB
Angled lever 3/2 way 1/8" ports A1007 344KB
Angled lever 3/2 way 1/4" ports A1037 323KB
Angled lever 5/2 way 1/8" ports A1008 367KB
Angled lever 5/2 way 1/4" ports A1036 355KB
Angled lever 5/3 way centre ports exhaust 1/8" ports A1009 298KB
Angled lever 5/3 way centre ports closed 1/8" ports A1010 298KB
Angled lever 5/3 way centre ports exhaust 1/4" ports A1011 302KB
Angled lever 5/3 way centre ports closed 1/4" ports A1012 302KB

Part Numbers Show…
76.022.26.21 | 76.023.26.41 | 760222621 | 760232641
76.022.25.00 | 76.022.25.21 | 76.025.25.22 | 760222500 | 760222521 | 760252522
76.042.25.00 | 76.042.25.21 | 76.042.25.22 | 760422500 | 760422521 | 760422522
76.023.25.40 | 76.023.25.41 | 76.023.25.42 | 760232540 | 760232541 | 760232542
76.143.25.40 | 76.143.25.41 | 76.143.25.42 | 761432540 | 761432541 | 761432542 | 76.043.25.40 | 76.043.25.41 | 76.043.25.42 | 760432540 | 760432541 | 760432542
76.024.25.28 | 76.024.25.29 | 760242528 | 760242529
76.024.25.38 | 76.024.25.39 | 760242538 | 760242539
76.144.25.28 | 76.144.25.29 | 761442528 | 761442529 | 76.044.25.28 | 76.044.25.29 | 760442528 | 760442529
76.144.25.38 | 76.144.25.39 | 761442538 | 761442539 | 76.044.25.38 | 76.044.25.39 | 760442538 | 760442539
