Solenoid Valves

Kuhnke 76 series solenoid valves
Kuhnke 76 series solenoid valve 5 way single solenoid 1/8 ports
Kuhnke 76 series solenoid valve 5 way double solenoid 1/8 ports

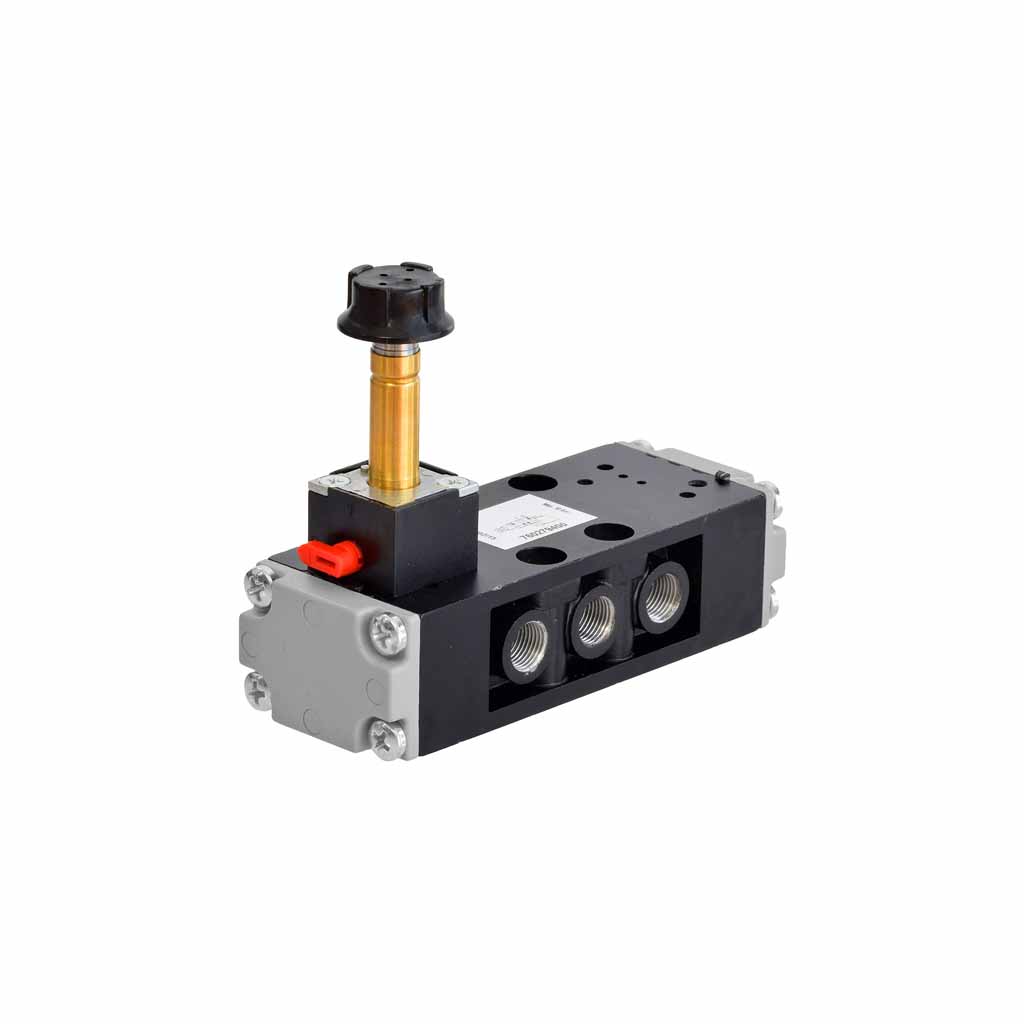

Kuhnke 76 series solenoid valve 5 way single solenoid 1/4 ports vertical coil

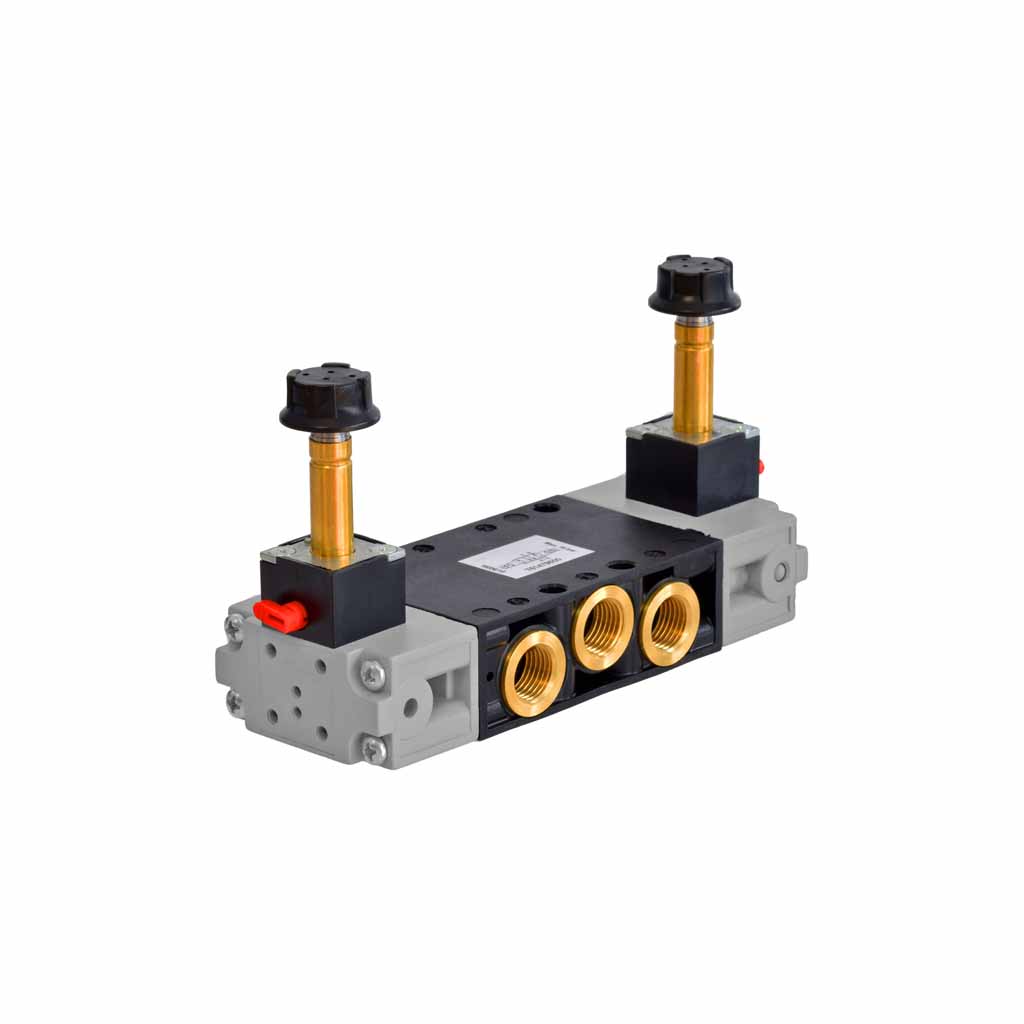

Kuhnke 76 series solenoid valve 5 way doublele solenoid 1/4 ports vertical coils

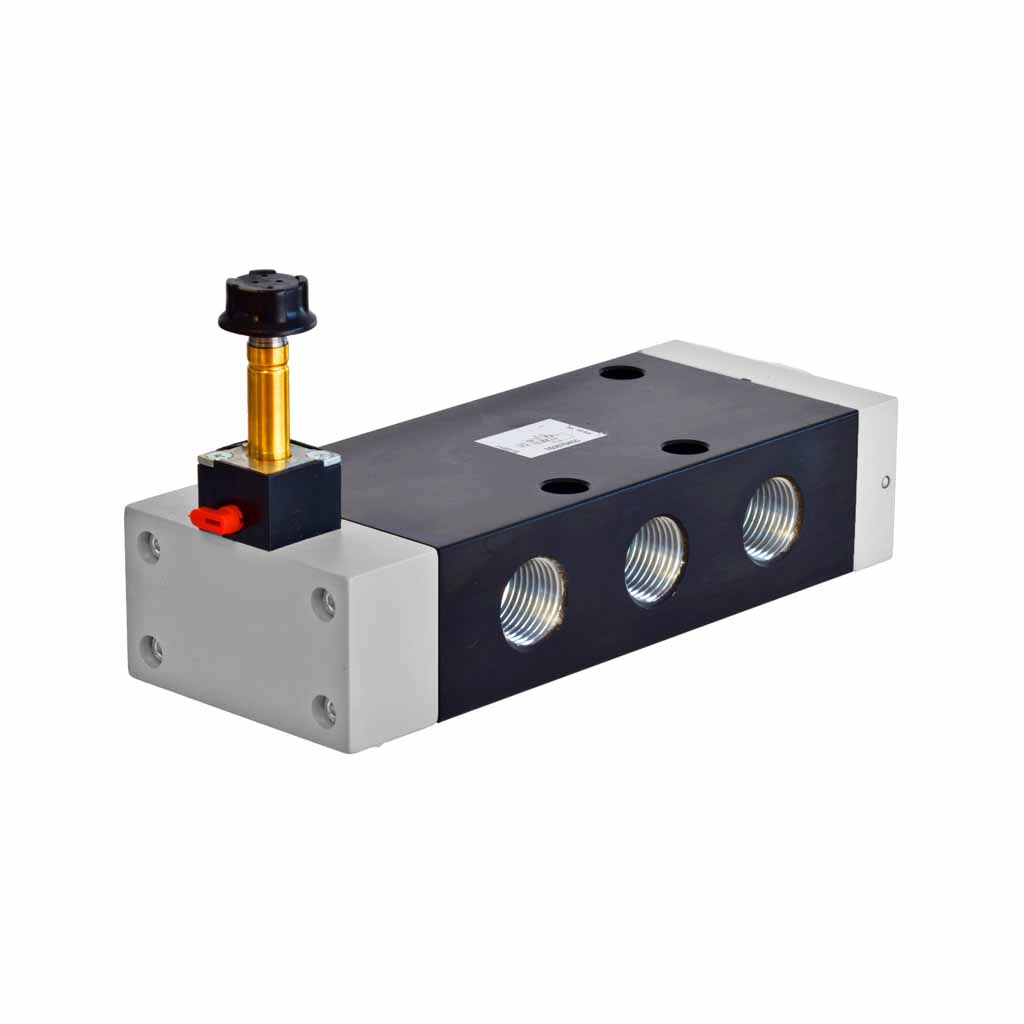

Kuhnke 76 series solenoid valve 5 way single solenoid 1/2 ports vertical coil

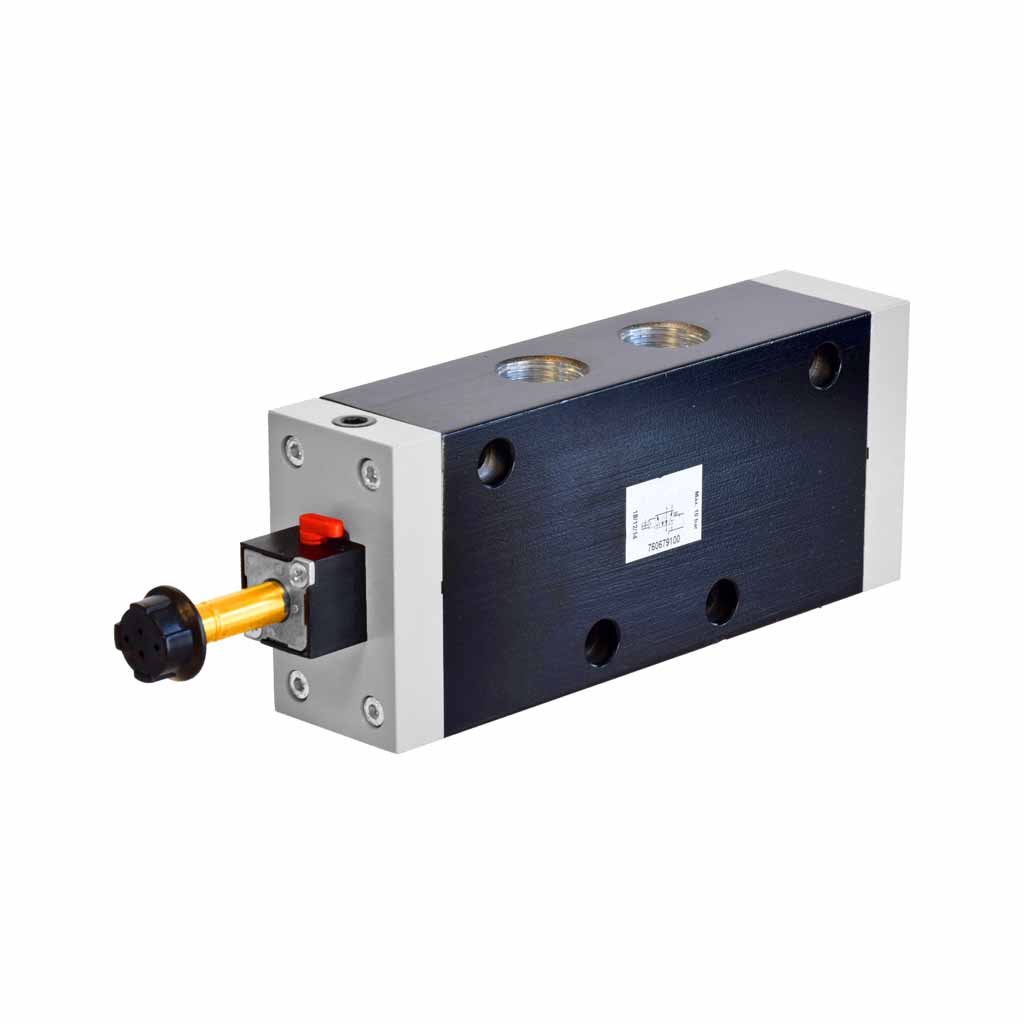

Kuhnke 76 series solenoid valve 5 way single solenoid 1/2 ports

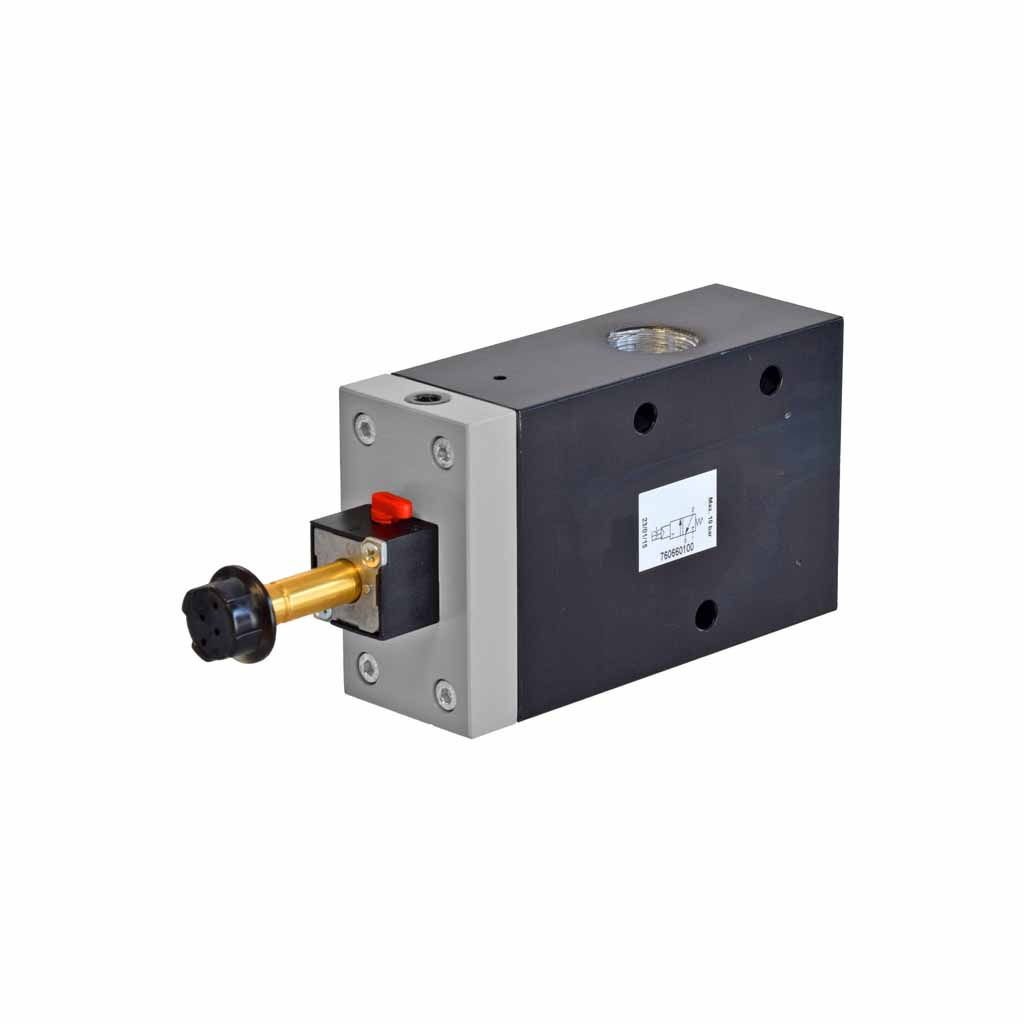

Kuhnke 76 series solenoid valve 3 way single solenoid 1/2 ports

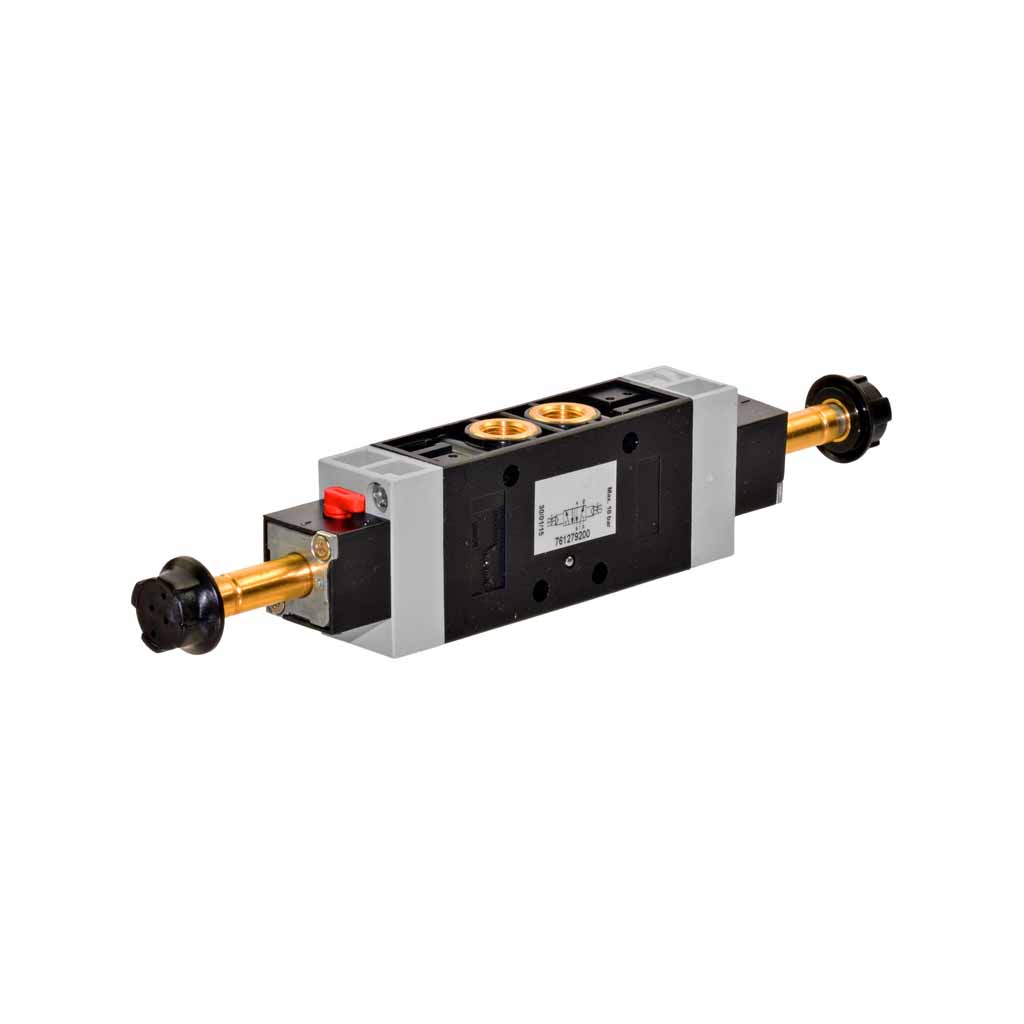

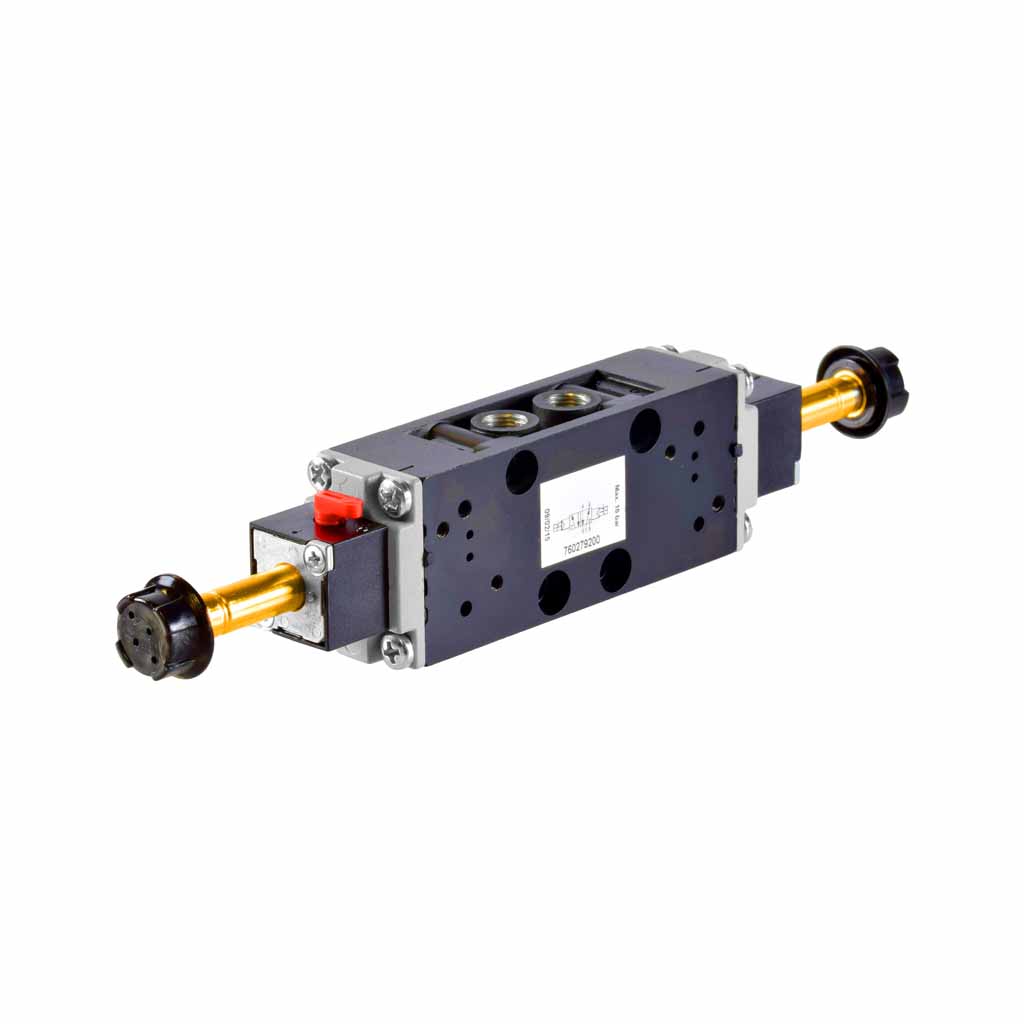

Kuhnke 76 series solenoid valve 5 way double solenoid 1/8 ports compact design

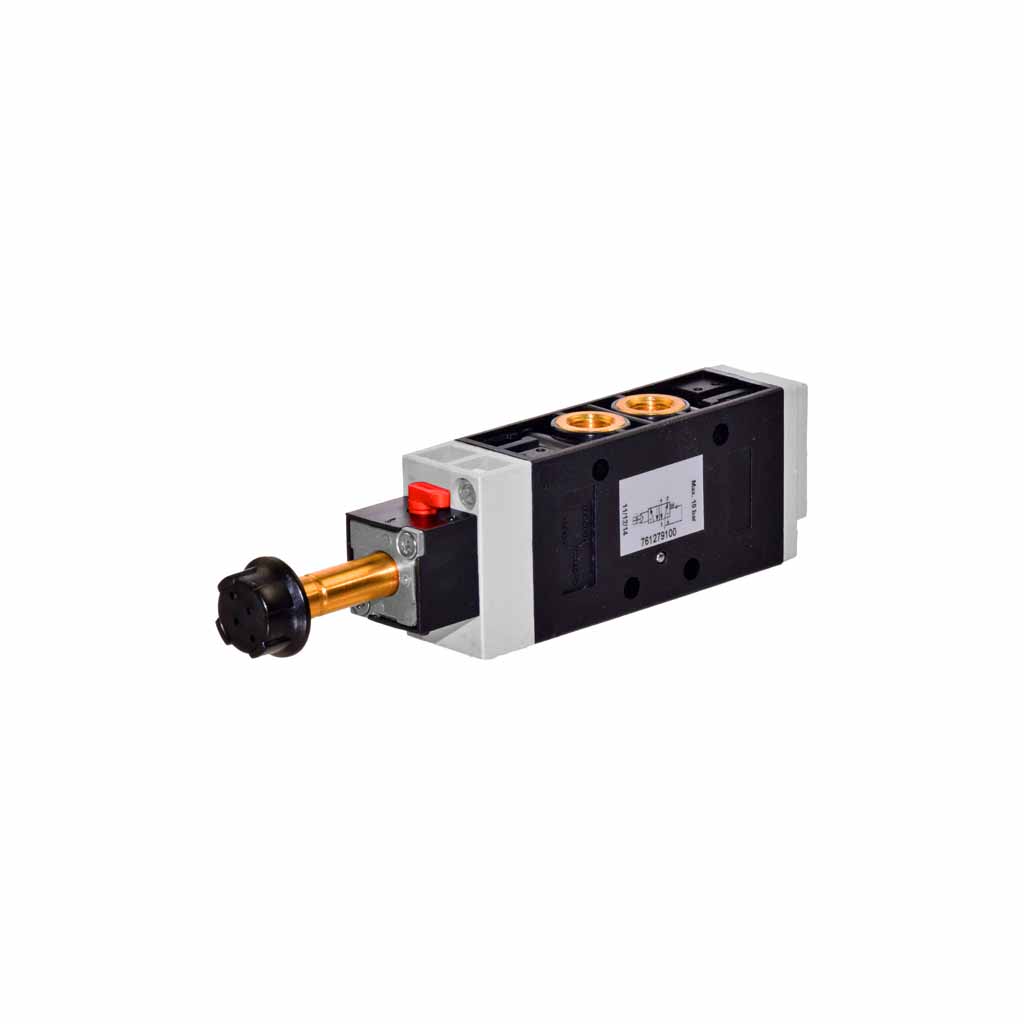

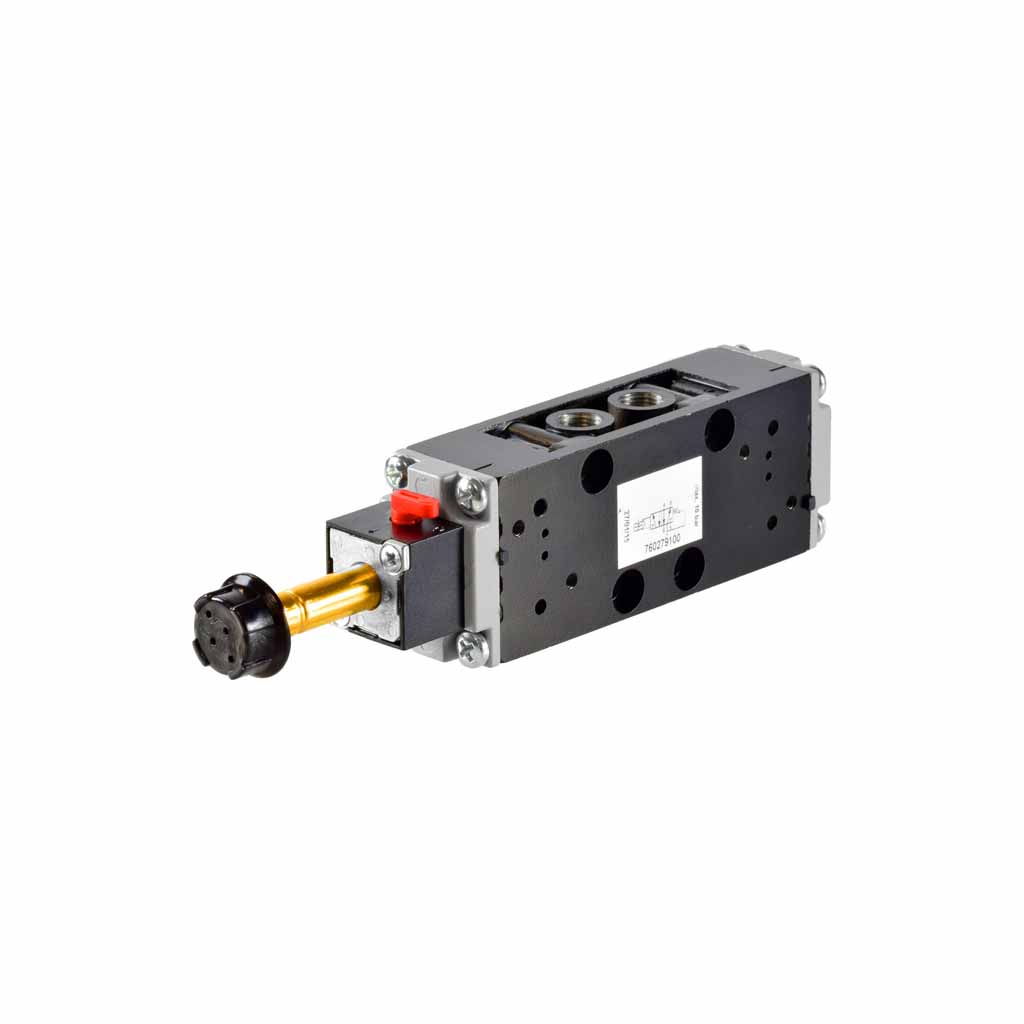

Kuhnke 76 series solenoid valve 5 way single solenoid 1/8 ports compact design

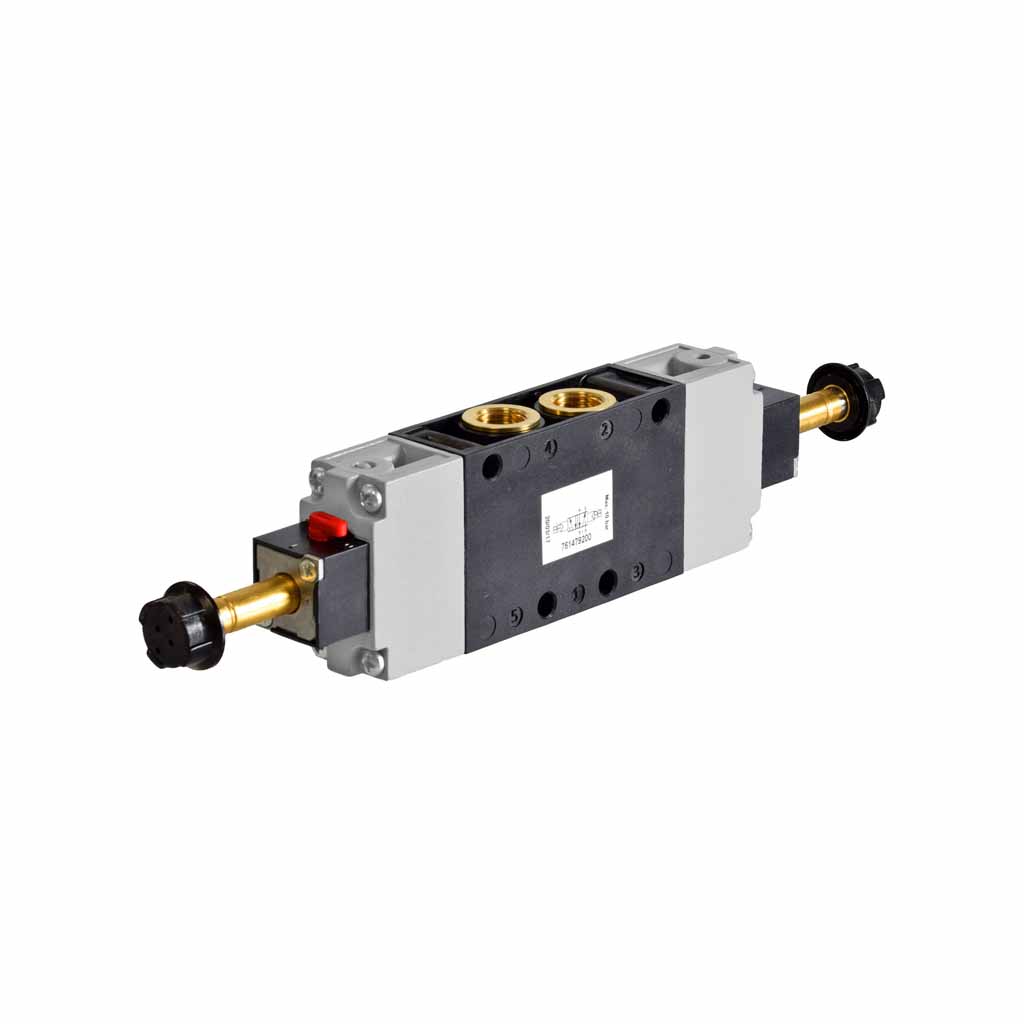

Kuhnke 76 series solenoid valve 5 way double solenoid 1/4 ports

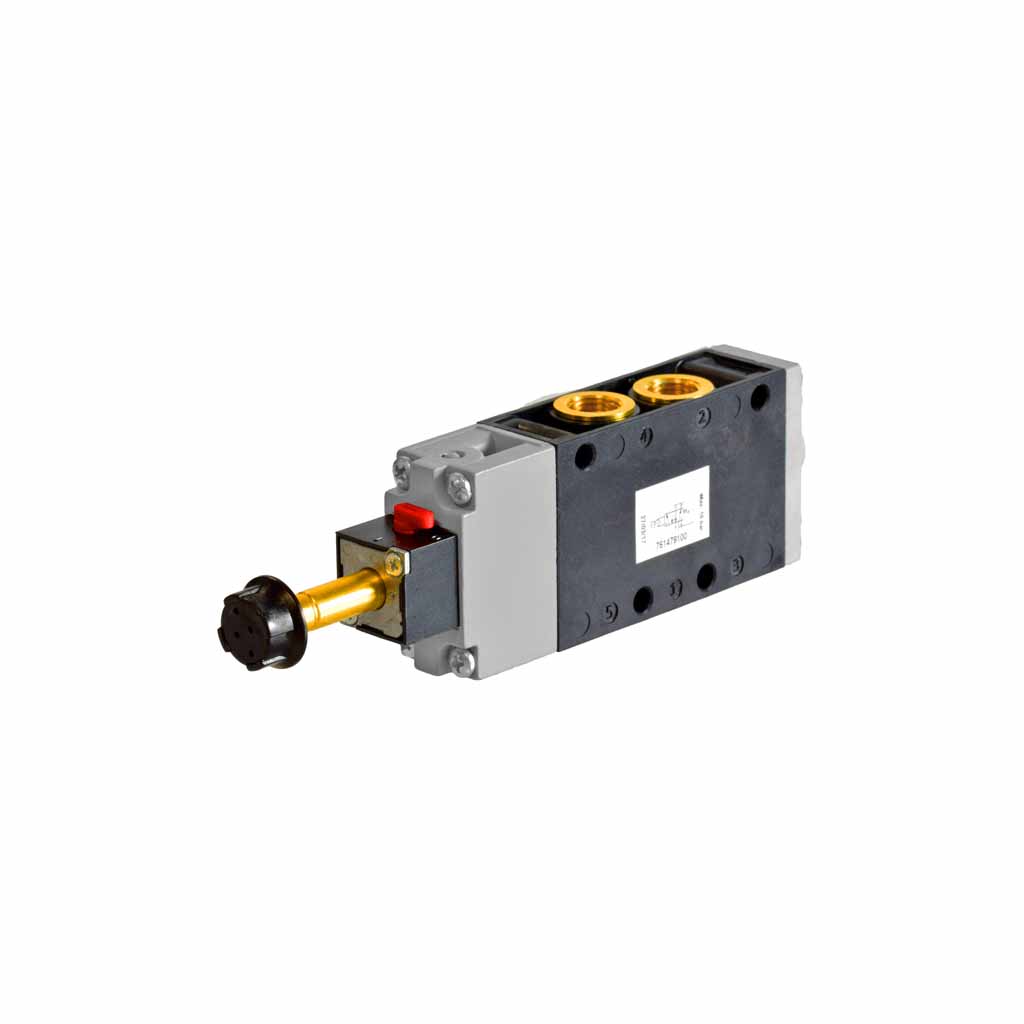

Kuhnke 76 series solenoid valve 5 way single solenoid 1/4 ports

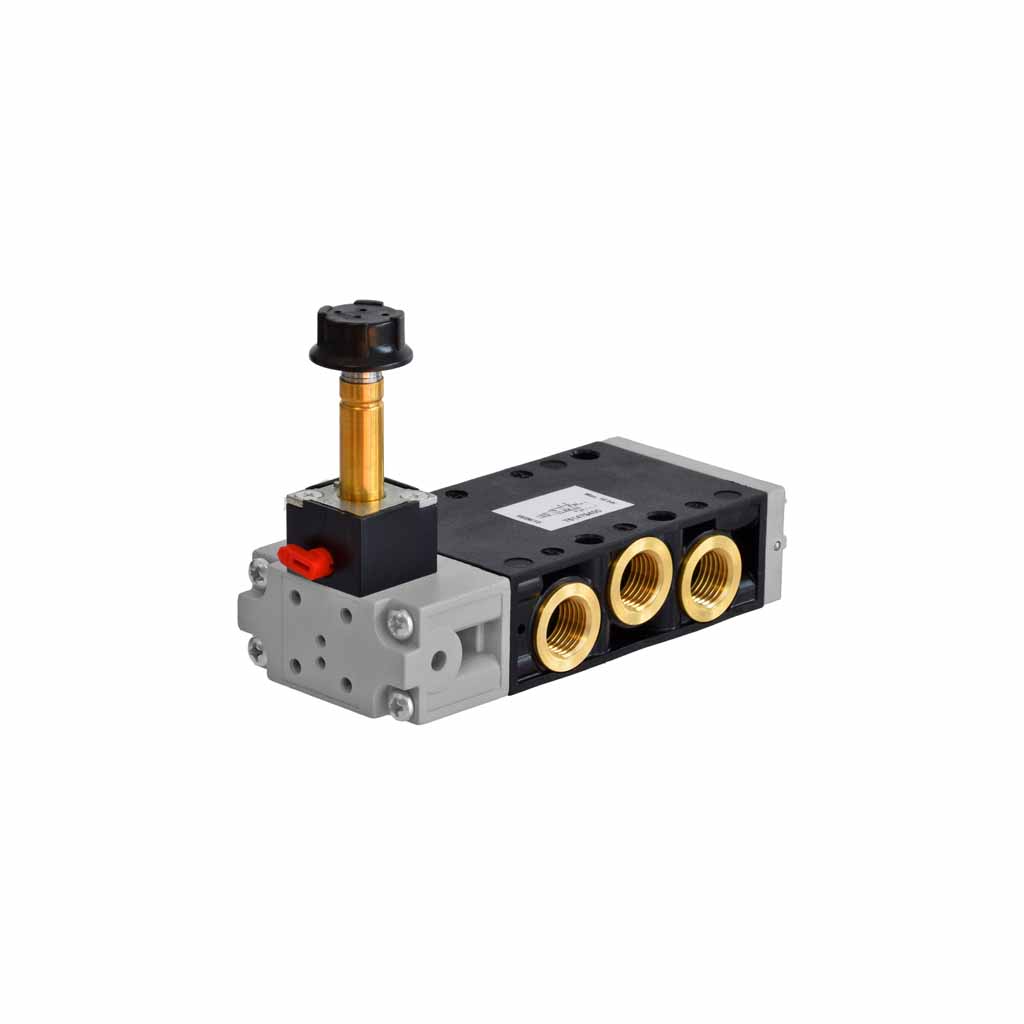

Kuhnke 76 series solenoid valve 5 way single solenoid 1/8 ports compact design vertical coil

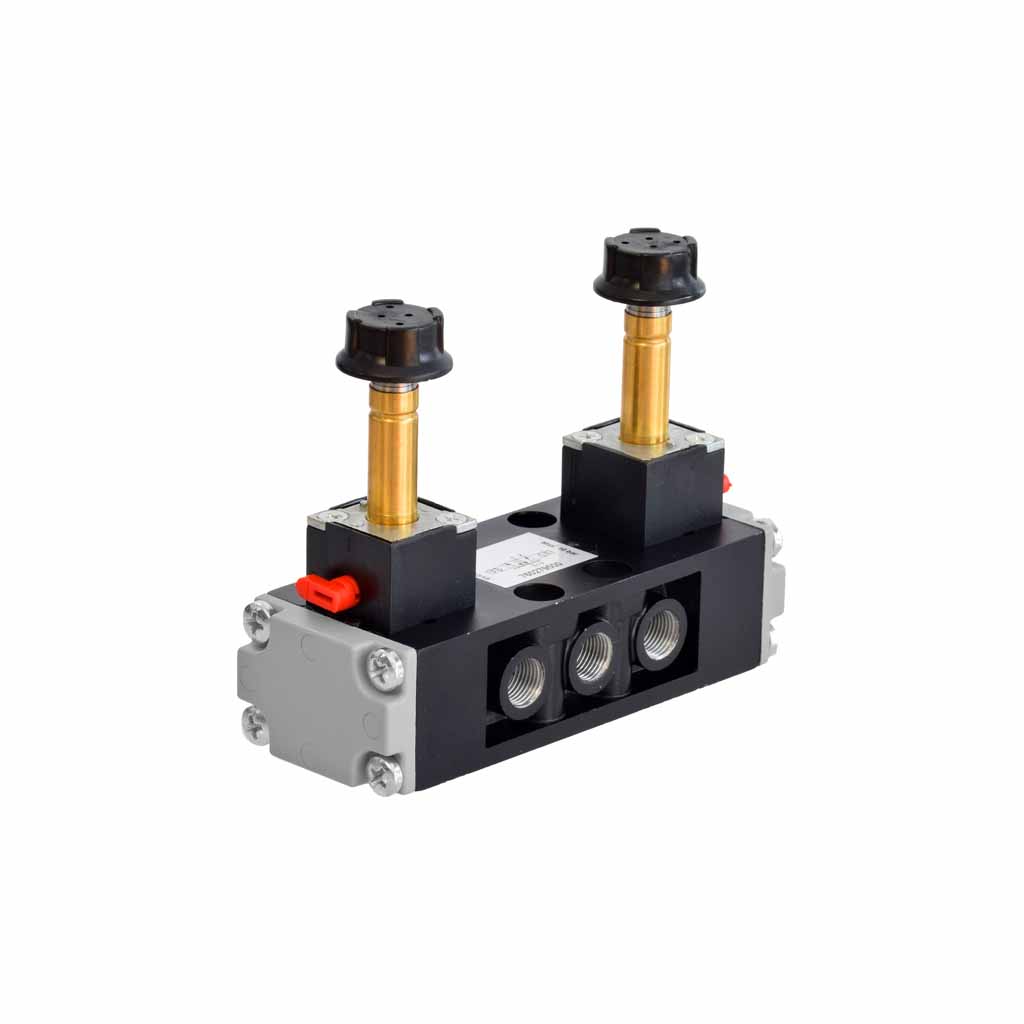

Kuhnke 76 series solenoid valve 5 way double solenoid 1/8 ports compact design vertical coil

Solenoid valves control compressed air within pneumatic systems electrically; they are used to signal valves, cylinders or other pneumatic devices.

An electrical coil, when energised, operates a pneumatic directional valve.

Solenoid valves are single or dual solenoid coil control with or without priority; the priority function ensures a default position should two control signals arrive simultaneously.

Solenoid valves are available as a 3 or 5-way valve configuration with G1/8, G1/4 or G1/2 threaded ports.

Voltages are 12V DC, 24, 48, 110V AC/DC or 230V AC. Coils slide onto a brass stem; a threaded cap secures the solenoid coil, and a wiring plug can be connected.

Choose between a poppet or spool design.

Poppet valves use O-rings, gaskets and seals designed to offer higher flow rates than spool valves.

Spool valves are manufactured using a stainless steel spool and plastic liner, and although spool valves have lower flow rates than poppet-type designs, they are better known for their long life expectancy.

We offer ATEX fully certified, CE-marked solenoid valves that comply with the ATEX directive for use within Group II Category 2, zones 1 and 21.

Downloads
3/2 way 1/8" & 1/4" ports single solenoid control C1001 443KB
3/2 way 1/2" ports single solenoid control C1002 428KB
5/2 way 1/8" ports single solenoid control C1003 322KB
5/2 & 5/3 way 1/8" ports double solenoid control C1004 532KB
5/2 way 1/4" ports single solenoid control C1007 386KB
5/2 & 5/3 way 1/4" ports single solenoid control C1008 534KB
5/2 way 1/2" ports single or double solenoid control C1009 392KB
5/2 way 1/2" ports single or double solenoid control vertical coils C1010 385KB
5/2 way 1/4" ports single solenoid control vertical coils C1013 404KB
5/2 & 5/3 way 1/4" ports double solenoid control vertical coils C1014 554KB
5/2 way 1/8" ports single solenoid control compact design C1005 342KB
5/2 & 5/3 way 1/8" ports double solenoid control compact design C1006 490KB
5/2 way 1/8" ports single solenoid control compact design vertical coil C1011 356KB
5/2 way 1/8" ports double solenoid control compact design vertical coils C1012 515KB
Manifolds and subplates M1001 268KB
Coils and connection plug M1002 360KB

Part Numbers Show…
76.126.01.00 | 76.146.01.00 | 76.126.11.00 | 76.146.11.00 | 76.026.01.00 | 76.046.01.00 | 76.026.11.00 | 76.046.11.00 | 761260100 | 761460100 | 761261100 | 761461100 | 760260100 | 760460100 | 760261100 | 760461100
76.066.01.00 | 76.066.11.00 | 760660100 | 760661100
76.127.91.00 | 76.123.91.00 | 761279100 | 761239100
76.127.92.00 | 76.123.92.00 | 76.127.93.00 | 76.123.93.00 | 76.124.12.00 | 76.124.02.00 | 761279200 | 761239200 | 761279300 | 761239300 | 761241200 | 761240200
76.147.91.00 | 76.143.91.00 | 761479100 | 761439100 | 76.047.91.00 | 76.043.91.00 | 760479100 | 760439100
76.147.92.00 | 76.143.92.00 | 76.144.12.00 | 76.144.02.00 | 761479200 | 761439200 | 761441200 | 761440200 | 76.047.92.00 | 76.043.92.00 | 76.044.12.00 | 76.044.02.00 | 760479200 | 760439200 | 760441200 | 760440200
76.067.91.00 | 76.067.92.00 | 760679100 | 760679200
76.067.94.00 | 76.067.95.00 | 760679400 | 760679500
76.147.94.00 | 76.143.94.00 | 761479400 | 761439400 | 76.047.94.00 | 76.043.94.00 | 760479400 | 760439400
76.147.95.00 | 76.143.95.00 | 76.144.15.00 | 76.144.05.00 | 76.047.95.00 | 76.043.95.00 | 76.044.15.00 | 76.044.05.00
76.027.91.00 | 76.023.91.00 | 760279100 | 760239100
76.027.92.00 | 76.023.92.00 | 76.024.12.00 | 76.024.02.00 | 760279200 | 760239200 | 760241200 | 760240200
76.027.94.00 | 76.023.94.00 | 760279400 | 760239400
76.027.95.00 | 76.023.95.00 | 76.024.15.00 | 76.024.05.00 | 760279500 | 760239500 | 760241500 | 760240500
76.420.00.99 | 76.420.00.98 | 76.420.00.01 | 76.420.00.05 | 76.420.00.06 | 764200099 | 764200098 | 764200001 | 764200005 | 764200006
76.410.00.01 | 76.410.00.02 | 76.410.00.03 | 76.410.00.04 | 76.410.02.12 | 76.410.02.13 | 76.410.02.14 | 76.410.02.15 | 764100001 | 764100002 | 764100003 | 764100004 | 764100212 | 764100213 | 764100214 | 764100215
