ISO 1 Valves

Kuhnke 76 series 5 way double solenoid ISO 1 valve with CNOMO coil

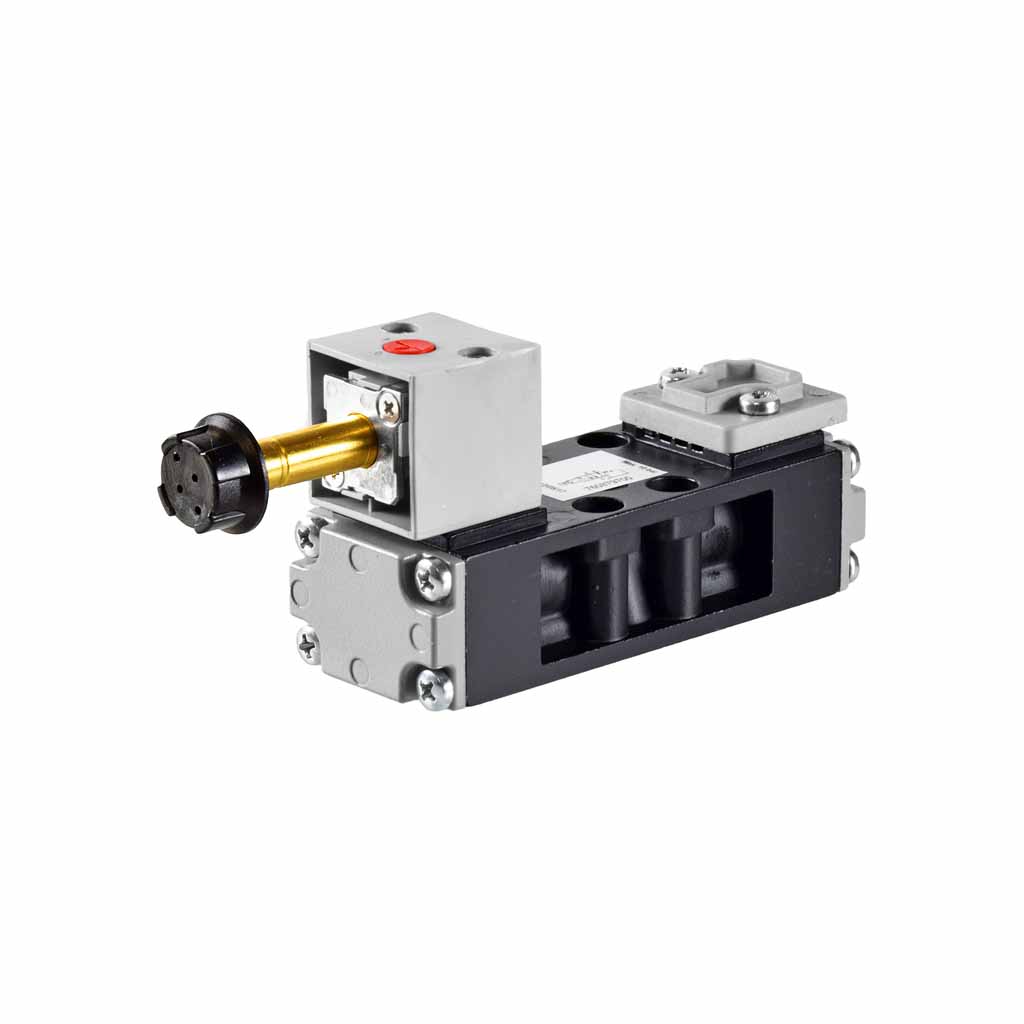

Kuhnke 76 series 5 way single solenoid ISO 1 valve with CNOMO coil
Kuhnke 76 series 5 way double solenoid ISO 1 valve with vertical coil
Kuhnke 76 series 5 way single solenoid ISO 1 valve with vertical coil
Kuhnke 76 series 5 way double solenoid ISO 1 valve
Kuhnke 76 series 5 way single solenoid ISO 1 valve

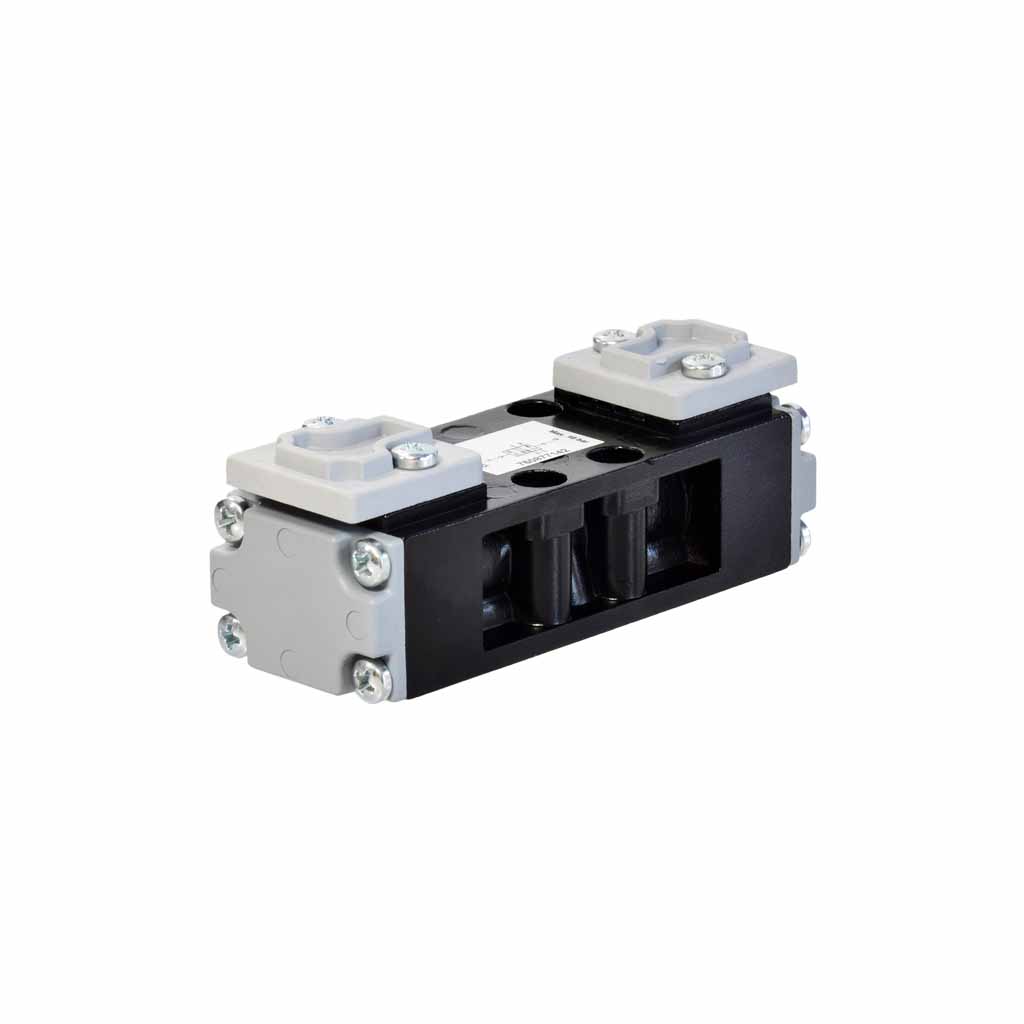

Kuhnke 76 series 5 way air pilot controlled ISO 1 valve

ISO 1 valves control compressed air within pneumatic systems to signal cylinders, valves, and other devices, designed to European specifications, standardising mounting holes, airflow requirements and valve body dimensions.

ISO 1 valves are available as a 5-way valve function; they can be pneumatically or electrically controlled by solenoid coils that can be in-line or vertical to the main valve body.

Voltages are 12V DC, 24, 48, 110V AC/DC or 230V AC. Coils slide onto a brass stem; a threaded cap secures the solenoid coil, and a wiring plug can be connected.

Choose between a poppet or spool design.

Poppet valves use O-rings, gaskets and seals designed to offer higher flow rates than spool valves.

Spool valves are manufactured using a stainless steel spool and plastic liner, and although spool valves have lower flow rates than poppet-type designs, they are better known for their long life expectancy.

We offer ATEX fully certified, CE-marked valves that comply with the ATEX directive for use within Group II Category 2, zones 1 and 21.

Downloads
5/2 way single air pilot control F1001 421KB
5/2 way double air pilot control F1002 308KB
5/3 way double air pilot control F1003 296KB
5/2 way single solenoid control E1001 354KB
5/2 way double solenoid control E1002 367KB
5/3 way double solenoid control E1003 422KB
5/2 way single solenoid control vertically mounted coil E1004 368KB
5/2 way double solenoid control vertically mounted coil E1005 373KB
5/3 way double solenoid control vertically mounted coil E1006 443KB
5/2 way single solenoid control CNOMO type coil E1007 368KB
5/2 way double solenoid control CNOMO type coil E1008 370KB
5/3 way double solenoid control CNOMO type coil E1009 423KB
Individual subplates M1004 346KB
Modular subplates for multiple assemblies M1005 618KB
Coils and connection plug M1002 360KB
Coils and connection plug CNOMO type M1003 409KB

Part Numbers Show…
76.087.71.41 | 76.083.71.41 | 760877141 | 760837141
76.087.71.42 | 76.083.71.42 | 76.087.71.47 | 76.083.71.47 | 760877142 | 760837142 | 760877147 | 760837147
76.084.71.28 | 76.084.71.38 | 760847128 | 760847138
76.087.91.00 | 76.083.91.00 | 760879100 | 760839100
76.087.92.00 | 76.083.92.00 | 760879200 | 760839200
76.084.02.00 | 76.084.12.00 | 760840200 | 760841200
76.087.94.00 | 76.083.94.00 | 760879400 | 760839400
76.087.95.00 | 76.083.95.00 | 760879500 | 760839500
76.084.05.00 | 76.084.15.00 | 760840500 | 760841500
76.087.97.00 | 76.083.97.00 | 760879700 | 760839700
76.087.98.00 | 76.083.98.00 | 760879800 | 760839800
76.084.08.00 | 76.084.18.00 | 760840800 | 760841800
76.420.00.11 | 76.420.00.12 | 764200011 | 764200012
76.420.00.93 | 76.420.00.14 | 76.420.00.75 | 76.420.00.85 | 76.420.00.27 | 76.420.00.28 | 764200093 | 764200014 | 764200075 | 764200085 | 764200027 | 764200028
76.410.00.01 | 76.410.00.02 | 76.410.00.03 | 76.410.00.04 | 76.410.02.12 | 76.410.02.13 | 76.410.02.14 | 76.410.02.15 | 764100001 | 764100002 | 764100003 | 764100004 | 764100212 | 764100213 | 764100214 | 764100215
76.411.00.01 | 76.411.00.02 | 76.411.00.03 | 76.411.00.04 | 76.411.02.12 | 76.411.02.13 | 76.411.02.14 | 76.411.02.15 | 764110001 | 764110002 | 764110003 | 764110004 | 764110212 | 764110213 | 764110214 | 764110215
